Xuzhou Palmary Electronics Co.,LTD

Product description:

· High-precision full-digital imaging technology, real and delicate display organization structure;

· Multiple display modes to realize multi-angle and multi-directional contrast observation;

· Large-capacity movie playback and permanent image storage, allowing doctors to easily capture the best images;

· TGC adjustment, with digital coding regulator, to accurately adjust the gain and improve image resolution;

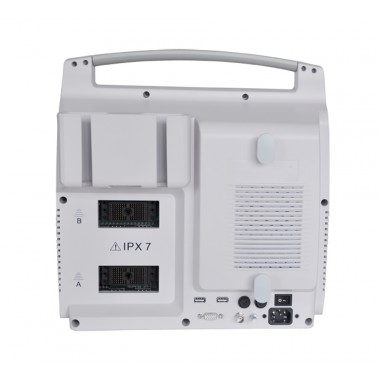

· A variety of video output interfaces, widely adapted to the needs of image information transmission and external equipment;

· With routine, gynecology, obstetrics and other measurement software and automatically generate report pages.

· Note: This product has passed the EU CE product quality certification

· Full digital beam synthesis

· Automatic probe recognition

· Rich image processing

· Automatic report generation

· Adjustable scanning angle and scanning depth

· Puncture guidance function

· Backlit silicone keyboard

Technical specifications:

· Imported 12.1-inch LCD screen

· Display mode: B,B+B,B+M,M,4B

· Geometric position accuracy (%): horizontal ≤15; vertical ≤10

· Maximum detection depth (mm): ≥240mm

· Blind zone(mm): ≤5

· Image gray scale:256 level

· Movie playback: 809 frames (maximum)

· Image storage: 32 frames

· Scanning angle adjustment: 50%～100%

· Scan depth adjustment: 40mm～240mm

· Sound power adjustment: two gears

· Dynamic range adjustment:100dB-130dB

· Image flip:Up/down, left/right, black/white

· Focus position:Adjustable

· Focal space:5 gears

· Measurement:Distance, circumference, area, volume, heart rate, GA,FW,EDD

· Notation:Date, time, name. sex, age, doctor, hospital name. Full screen words edit.

· Report output: two types

· Posture mark: 40 types

· Power consumption (MAX): 200VA

· Power supply voltage: AV220V±22V;

· Frequency: 50MHz±1MHz

· Optional L3－1/40/7.5MHz (shallow surface); EC1-1B/R13/6.5MHz (cavity)
