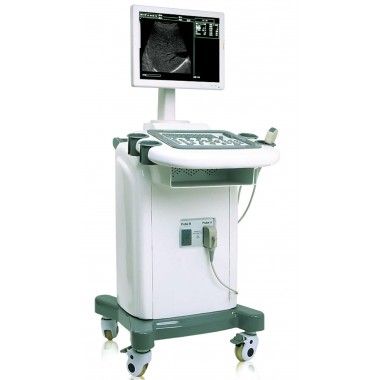

Product Introduction:

· High-precision full-digital imaging technology, real and delicate display organization structure;

· Multiple display modes to realize multi-angle and multi-directional contrast observation;

· Large-capacity movie playback and permanent image storage, allowing doctors to easily capture the best images;

· TGC adjustment, with digital coding regulator, to accurately adjust the gain and improve image resolution;

· A variety of video output interfaces, widely adapted to the needs of image information transmission and external equipment;

· With routine, gynecology, obstetrics and other measurement software and automatically generate report pages.

· Full digital beam synthesis

· Automatic probe recognition

· Rich image processing

· Automatic report generation

· Adjustable scanning angle and scanning depth

· Puncture guidance function

· Backlit silicone keyboard

Technical specifications：

v 15 inch imported high-resolution LCD screen

v Display Mode: B, B/B, 4B, B+M, M.

v Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0.

v Geometric position accuracy (%): horizontal ≤15; vertical ≤10

v Maximum detection depth (mm): ≥240

v Blind area: ≤5mm.

v Grey scale: 256.

v Movie playback: 809 frames (maximum)

v Image storage: 32 frames

v Scanning angle adjustment: 50%～100%

v Scan depth adjustment: 40mm～240mm

v Sound power adjustment: two gears

v Dynamic range adjustment: 100dB ～ 130dB

v Image flip: up / down, left / right, black / white

v Focus position adjustment: support

v Focal spacing adjustment: 5 gears

v Measuring function: Distance, perimeter, area, volume, heart rate, gestationa weeks,fetal weight (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on.

v Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock display.

v Report output: two kinds

v Posture mark: 40 kinds

v Power consumption (MAX): 200VA

v Power supply voltage: AV220V±22V;

v Frequency: 50MHz±1MHz

v Optional L3－1/ 40 / 7.5MHz (shallow surface); EC1-1B / R13 / 6.5MHz (cavity)

v Puncture guide: displayed under B mode.

v Gain control: 8 segments TGC and full gain can be adjusted respectively.

v Output interface: SVGA, PAL, video recorder and image workstation and etc, USB output.
